Product Description

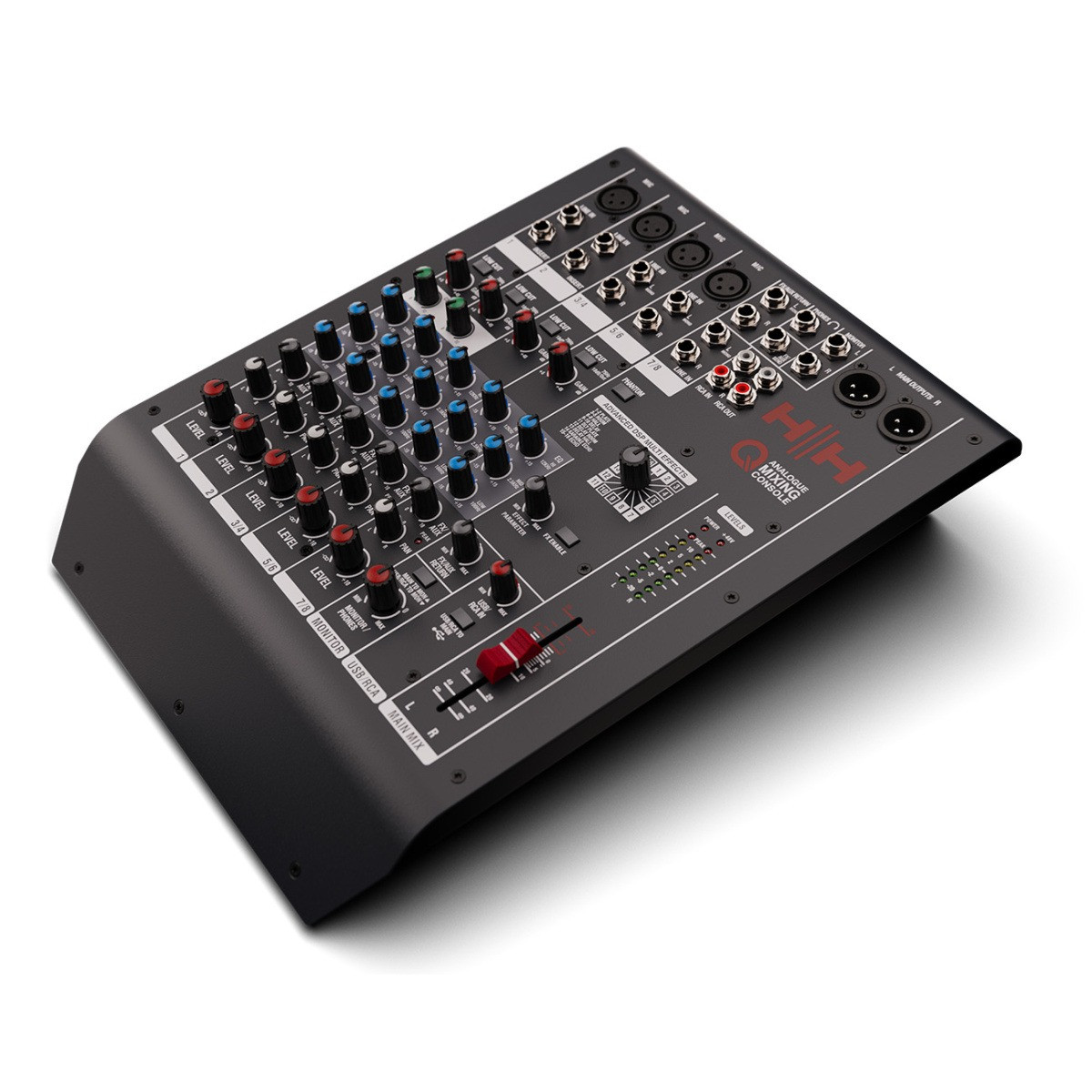

The HH Audio Q8FX is an 8-channel analogue mixing console from the Q Series, designed and engineered in the UK. Four low-noise microphone preamps sit alongside three stereo line input channels suited to electric pianos, synthesizers, drum machines, and other line-level sources. Channels 1 and 2 add single-knob compression, while a 75 Hz low cut and 3-band EQ on each channel let you shape every source in the mix. With 16 DSP effects, 2-in/2-out USB audio, global phantom power, and comprehensive monitoring in a robust chassis, it works for live sound, recording, and podcasts.
- Mic Inputs: 4 x XLR CH1-6
- Line Inputs (Mono): 2 x ¼” 6.3mm TRS CH1-2
- Line Inputs with Mic (Stereo): 2 x Stereo ¼” 6.3mm TRS CH3-6
- Line Inputs (Stereo): 1 x Stereo ¼” 6.3mm TRS CH7-8
- EQ: 3 band (±15dB), Low 100Hz, Mid 2.5kHz, High 12kHz per channel
- Low Cut: 75Hz cut off @ 18dB/Octave (CH1-6)
- Compressor: 2:1 Ratio, 9dB Makeup Gain, -8dBu input threshold (max compression, CH1-2)
- Main Outputs: Balanced Stereo XLR
- Monitors: Stereo ¼” 6.3mm TRS sockets
- FX Send: Mono ¼” 6.3mm TRS
- Phones: Mono ¼” 6.3mm TRS
- RCA: Stereo Phono Sockets
- Effects: 16 Reverb and Delay effects with enable switch and parameter control.
- USB Audio: Inputs/Outputs: 2-in, 2-out, 16-bit, 24-bit, Sample Rate: 48kHz
- AC Power: Universal 100-240V ~ 50/60Hz (EIC C14 Socket, AC Cord included)
An AC power cord is included in the box.
Can the HH Audio Q8FX record audio over USB?
Yes. The Q8FX has 2-in/2-out USB audio at 16-bit or 24-bit with a 48kHz sample rate, making it suitable for recording performances, podcasts, and music production.
Does the Q8FX provide phantom power for condenser microphones?
Yes. The Q8FX has global phantom power for its 4 low-noise mic inputs.
What built-in effects does the Q8FX have?
It offers 16 DSP effect programs with parameter adjustment, including reverb, delay, and echo, with an enable switch and parameter control.
Does the Q8FX have onboard compression?
Yes. Channels 1 and 2 feature a single-knob compressor with a 2:1 ratio, 9dB makeup gain, and a -8dBu input threshold at maximum compression.
Can I use the Q8FX internationally with different mains voltages?
Yes. It has an internal universal ~100-240V 50/60Hz power supply for worldwide operation via an IEC C14 socket, and an AC cord is included.
