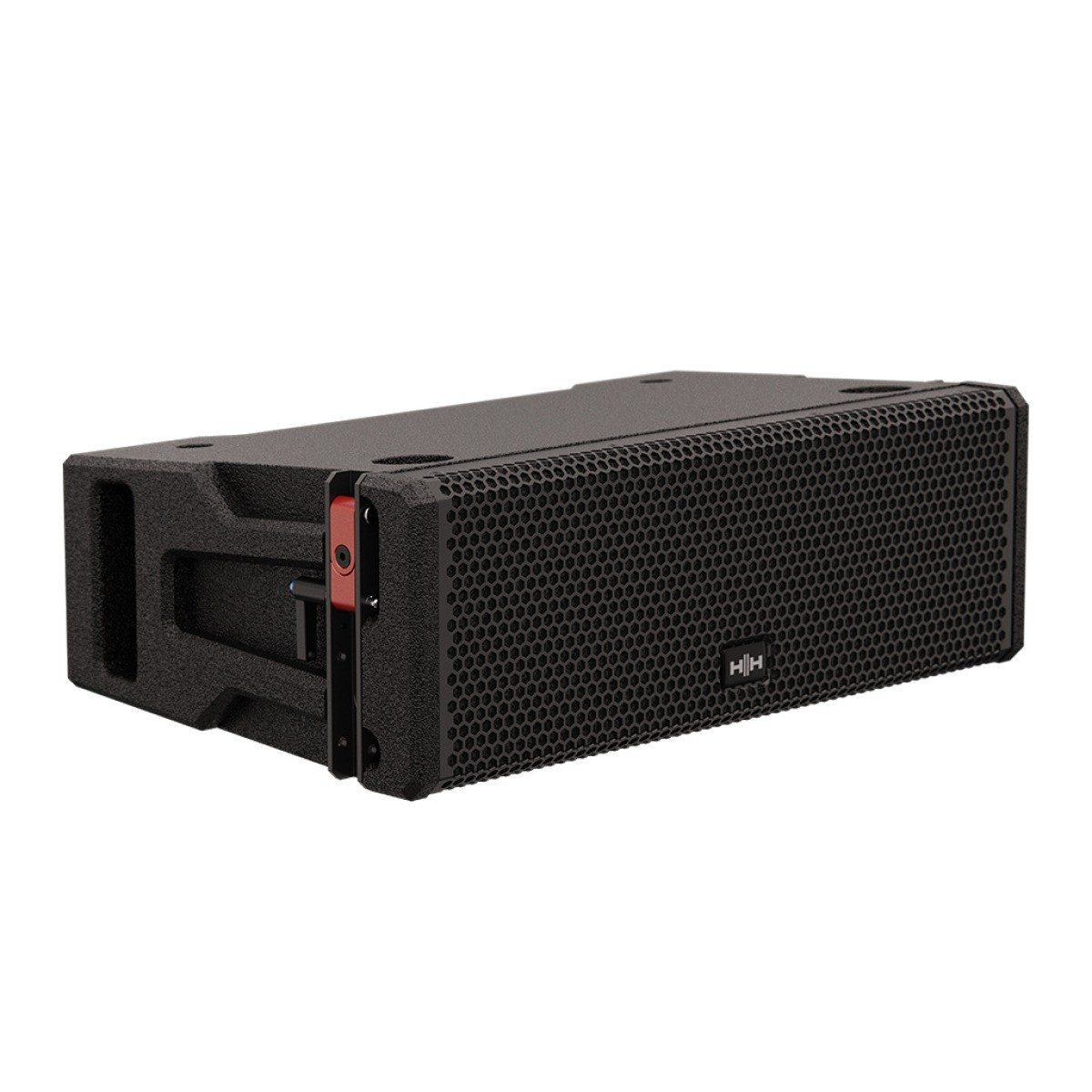

HH Audio TNA-2051-G3 Passive Line Array Loudspeaker 2x5-inch 1.33-inch Celestion Driver 200W
Product Description
The HH Audio TNA-2051-G3 is a passive 2-way line array loudspeaker featuring two 5-inch HH-designed LF drivers and a 1.33-inch Celestion compression driver. It has a power handling of 200W AES / 800W Peak and a frequency response of 100Hz - 18KHz (-3dB). This loudspeaker is designed for professional audio applications requiring controlled coverage and clarity.
- System Type 2-way line array loudspeaker
- Frequency Response (-10) 65Hz - 20KHz (-10dB)
- Frequency Response (-3) 100Hz - 18KHz (-3dB)
- Power 200W AES, 800W Peak
- Sensitivity (1W/1M) 94 dB SPL
- Max SPL 123dB SPL
- Nominal System Impedance 16 ohms
- Input Connector NL4 ±1 Twist Lock Connector.
- Link Connector NL4 ±1 Twist Lock Connector.
- HF Driver 1 x 1.33-inch Celestion Compression Driver, mounted to Celestion Designed waveguide and horn.
- LF Driver 2 x 5-inch HH-designed driver.
- Crossover Frequency 2000Hz
- Nominal Dispersion 120° x 8° Single Box.
- Recommended HPF Frequency 100Hz
- Cabinet 15mm Plywood.
- Finish Painted Black.
- Compatible suspended-mounting bracket: TNA-BRK1-G3.
- Mounting Points 6 x M8 mounting points for integrated rigging system.
- Linking Bracket 3-point rigging system w/removable locking pin for linking and adjusting splay angle.
- Splay Angle Settings 0°, 4° and 8° (between enclosures).
- Grille 1.5mm Thickness Steel, Hexagonal mesh, acoustic foam lined.
- Unit Dimensions (Hwd) 163 x 496 x 288mm (6.42" x 19.53" x 11.34")
Is the TNA-2051-G3 powered or passive?
It is a passive loudspeaker and needs an external amplifier. The nominal impedance is 16 ohms.
What drivers and power rating does it have?
It has two 5-inch HH-designed low-frequency drivers and one 1.33-inch Celestion compression driver. Power handling is 200 W AES or 800 W peak.
What are its dimensions?
The enclosure measures 163 mm high, 496 mm wide and 288 mm deep (6.42 x 19.53 x 11.34 inches).
