Product Description

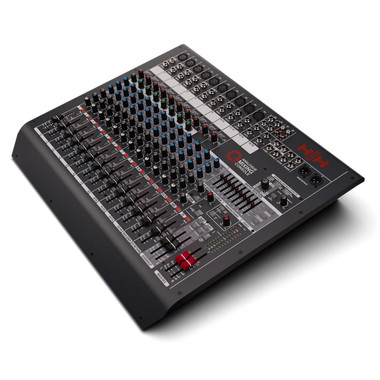

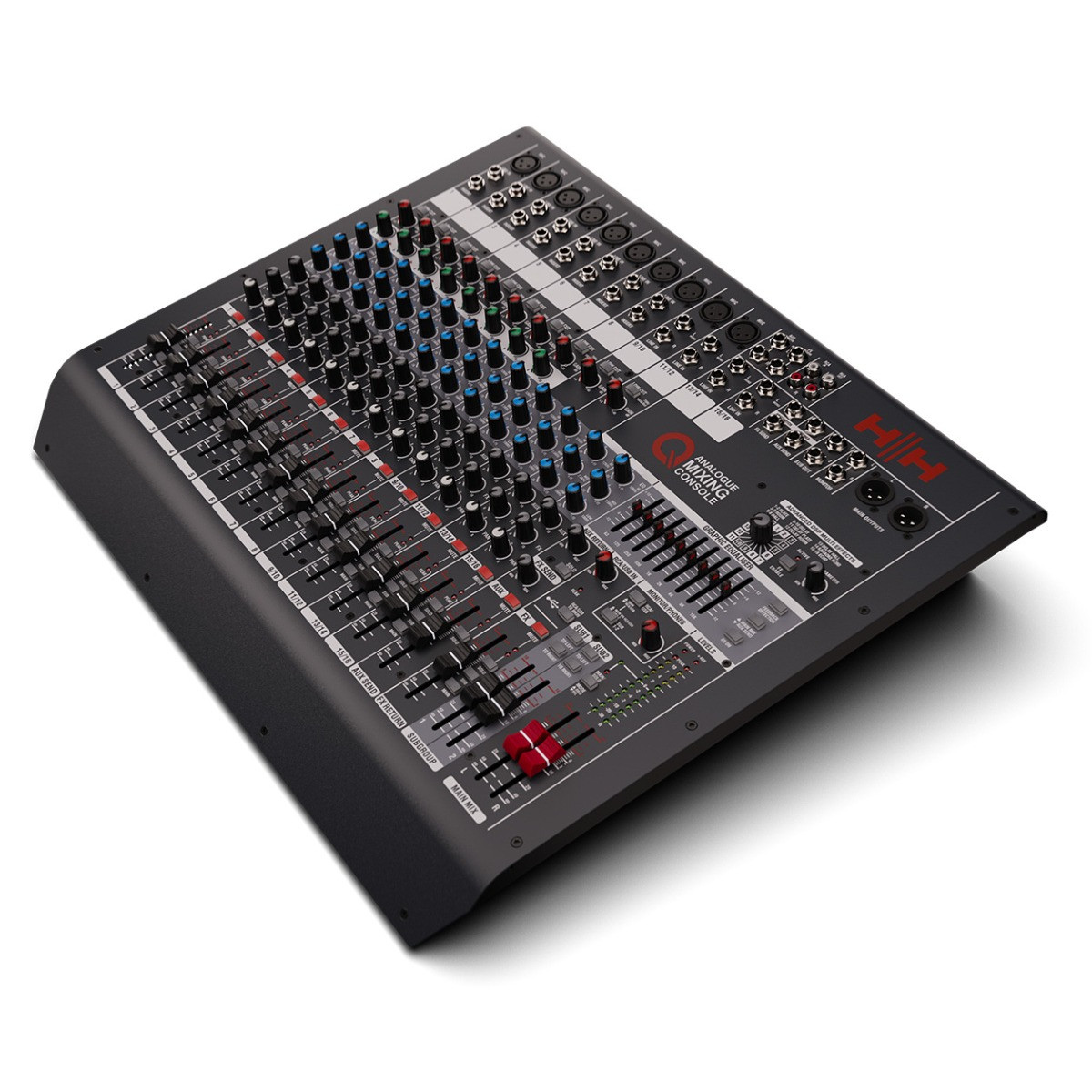

The HH Audio Q16FX is a 16-channel analogue stereo mixing console from the Q Series, designed and engineered in the UK. Ten mono channels with low-noise microphone preamps sit alongside four stereo line channels suited to keyboards, drum machines and media players. Sixteen onboard DSP effects with parameter control plus 2-in/2-out USB audio make it a strong choice for live sound, recording and podcasts. A 9-band master graphic EQ with feedback detection and comprehensive monitoring round out a robust and portable package.
- Mic Inputs 10 x XLR CH1-12
- Line Inputs (Mono) 8 x ¼” 6.3mm TRS CH1-8
- Line Inputs with Mic (Stereo) 2 x Stereo ¼” 6.3mm TRS CH9-12
- Line Inputs (Stereo) 2 x Stereo ¼” 6.3mm TRS CH13-16
- EQ 3 band (±15dB), Low 100Hz, Mid 2.5kHz, High 12kHz per channel
- Low Cut 75Hz cut off @ 18dB/Octave (CH1-12)
- Compressor 2:1 ratio 9dB makeup gain, -8dBu input threshold (max compression, Ch1-8)
- Main Outputs Balanced Stereo XLR
- Monitors Stereo ¼” 6.3mm TRS Sockets
- Sub Outputs 2 x ¼” 6.3mm TRS Sockets
- FX Send Mono ¼” 6.3mm TRS
- Aux Send Mono ¼” 6.3mm TRS
- Phones Mono ¼” 6.3mm TRS
- RCA Stereo Phono Sockets
- Effects 16 Reverb and delay effects with enable switch and parameter control.
- Graphic EQ Master 9 Band Graphic EQ with feedback detect, on/off toggle
- USB Audio Inputs/Outputs: 2-in/2-out, 24-bit, Sample Rate 48kHz
- AC Power Universal 100-240V ~ 50/60Hz (EIC C14 Socket, AC Cord included)
An AC power cord is included with the console.
Can I record directly to a computer with the HH Audio Q16FX?
Yes. The Q16FX has 2-in/2-out USB audio at 24-bit with a 48kHz sample rate, making it suitable for recording performances, podcasts and music production.
Does the Q16FX provide phantom power for condenser microphones?
Yes. The Q16FX features global phantom power across its low-noise microphone inputs.
How many microphone inputs does the Q16FX have?
The Q16FX provides 10 low-noise microphone inputs on XLR (channels 1-12), plus a line-in option on each mono channel and 4 stereo line input channels.
What built-in effects does the Q16FX include?
It includes 16 DSP effects — reverbs, delays and echoes — with an enable switch and parameter adjustment control.
Can the Q16FX be used internationally with different mains voltages?
Yes. It has an internal universal 100-240V ~ 50/60Hz power supply for worldwide operation, with an AC cord included.
