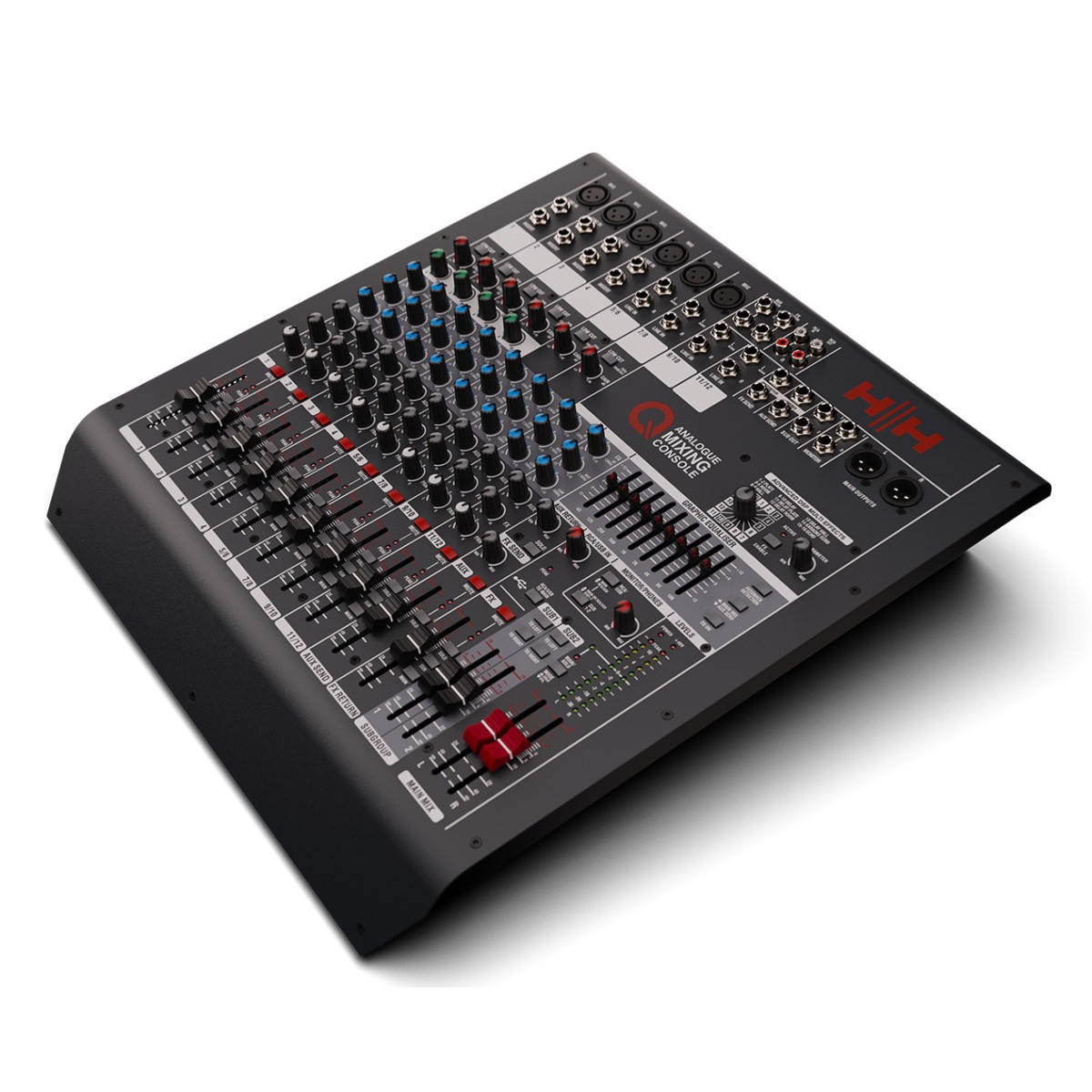

HH Audio Q12FX Q Series 12-Channel Analog Mixing Console USB 16 DSP Effects

The HH Audio Q12FX is a 12-channel analogue mixing console from the Q Series, designed and engineered in the UK. It pairs 6 mono channels with low-noise microphone preamps alongside 4 stereo line input channels suited to electric pianos, synthesizers, drum machines and other line-level sources. Single-knob compressors on channels 1 to 4, a 3-band EQ on every channel and 16 DSP effects with parameter control let you shape tone, dynamics and depth, while a 9-band master graphic EQ with feedback detection refines the whole mix. With 2-in/2-out USB audio, comprehensive monitoring and global phantom power in a robust chassis, it is a portable powerhouse for live sound, recording and podcasts.

• Mic Inputs 6x XLR CH1-8
• Line Inputs (Mono) 4 x ¼” 6.3mm TRS CH1-4
• Line Inputs with Mic (Stereo) 2 x Stereo ¼” 6.3mm TRS CH5-8
• Line Inputs (Stereo) 2 x Stereo ¼” 6.3mm TRS CH9-12
• EQ 3 band (±15dB), Low 100Hz, Mid 2.5kHz, High 12kHz per channel
• Low Cut 75Hz cut off @ 18dB/Octave (CH1-8)
• Compressor 2:1 Ratio, 9dB Makeup Gain, -8dBu input threshold (max compression, CH1-4)
• Main Outputs Balanced Stereo XLR
• Monitors Stereo ¼” 6.3mm TRS Sockets
• Sub Outputs 2 x ¼” 6.3mm TRS Sockets
• FX Send Mono 1/3” 6.3mm TRS
• Aux Send Mono ¼” 6.3mm TRS
• Phones Mono 1/4” 6.3mm TRS
• RCA Stereo Phono Sockets
• Effects 16 Reverb and Delay effects with enable switch and parameter control
• Graphic EQ Master 9 Band Graphic EQ with feedback detect, on/off toggle
• USB Audio Inputs/Outputs: 2-in, 2-out, 16-bit, 24-bit, Sample Rate: 48kHz
• AC Power Universal 100-240V ~ 50/60Hz (EIC C14 Socket, AC Cord included)

An AC power cord is included.

How many microphone inputs does the HH Audio Q12FX have?
The Q12FX has 6 low-noise microphone inputs on XLR connectors (channels 1-8), each with a line-in option on the mono channels.

Can the Q12FX be used as a USB audio interface for recording?
Yes. The Q12FX offers 2-in/2-out USB audio at 16-bit or 24-bit with a 48kHz sample rate, making it a useful tool for recording performances, podcasts and music production.

Does the Q12FX provide phantom power for condenser microphones?
Yes, the Q12FX features global phantom power for its microphone inputs.

What built-in effects does the HH Audio Q12FX include?
It includes 16 DSP programs with parameter adjustment, covering reverb, delay and echo effects, plus an enable switch and parameter control.

Can the Q12FX be used internationally with different mains voltages?
Yes. It has an internal universal ~100-240V power supply for worldwide operation, running at 50/60Hz via an EIC C14 socket with AC cord included.
