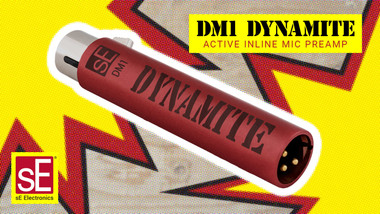

sE Electronics DM1 Dynamite Active In-line Microphone Preamp with 28dB Gain

$99.00
SKU:
DAH-DM1-MIC-PRE-U
Condition:
New
Weight:
1.00 LBS
Availability:
1
Shipping:
Calculated at checkout
Quantity:
-
+

Product Description

The DM1 DYNAMITE: explosive level for all your passive mics.

Some mics need a LOT of gain - and not all preamps are up to the challenge. The DM1 DYNAMITE is an ultra-slim active inline preamp that fits seamlessly between your mic and mic pre, providing a massive +28dB of clean, transparent gain for all your dynamic and passive ribbon microphones - perfect for podcasting, recording, or live sound.

With a sophisticated class-A design and specially-selected high-grade FETs, the DM1 has vastly lower output impedance and nearly half the noise of anything else on the market. Additionally, the gain it provides is always a consistent +28dB regardless of the connected load, thanks to its dedicated buffer amplifier.

Whether you’re a podcaster, recording engineer, or running live sound, the DM1 is the perfect way to boost the signal from a passive mic, reduce the likelihood of interference, and provide significantly improved level to your preamp – all without adding noise or coloration. Its output impendence is also the lowest in its class, allowing it to drive long cable runs while reducing susceptibility to RF interference, buzz and hum.

Reliable operation even in demanding on-stage applications in difficult environments is ensured by the roadworthy and slim all-metal design, robust construction, and high-quality manufacturing standards.

For optimum results, we recommend you plug the DM1 directly into your microphone’s output. If necessary, a cable can be used between the microphone and the DM1 - but the shorter the cable, the better the overall performance will be.

+28dB OF CLEAN, CONSISTENT GAIN, INDEPENDENT OF LOAD

  • designed for neutral, balanced sound quality

  • the perfect way to boost the signal of a passive microphone

  • gain stays consistent regardless of connected load

  • provides significantly improved level to your mic preamp for proper gain staging


SOPHISTICATED CLASS-A ELECTRONICS

  • state of the art electronics and high-grade FETs provide supremely low noise

  • transformerless design for pristine sound quality

  • provides the lowest noise in its class


DEDICATED OUTPUT BUFFER AMPLIFIER

  • provides +28dB output independent of load impedance or cable length

  • extremely low output impedance

  • drives long cable runs and can reduce susceptibility to RF interference, buzz & hum


SLIM, RUGGED ALL-METAL HOUSING WITH PREMIUM FINISH

  • efficient rejection of any electrical interference and noise

  • high-quality finish ensures a great look for many years

  • slim design allows for easy placement in the studio or on stage


GOLD-PLATED XLR CONNECTOR

  • for loss-free and reliable signal connection

IN THE BOX

DM1
sE Logo Sticker
User manual with warranty card


SPECIFICATIONS

Frequency Range: 10 Hz - 120,000 Hz (-0.3 dB)

Gain: 28 dB (load 1kOhms)

Max output level (0.5% THD): 8.3 dBV (2.6 V)

Output noise level: 9 μV (JIS-A)

Powering: 48 Volts according toIEC 61938

Electrical impedance: 135 Ohms

Recommended load impedance: >1k Ohms

Current consumption: 3.0 mA

Connectivity: 3-pin male/female XLR connector

Dimensions: Diameter: 19 mm (0.75 in.) Length: 95.5 mm (3.76 in.)

Weight: 80 g (2.82 oz.)
