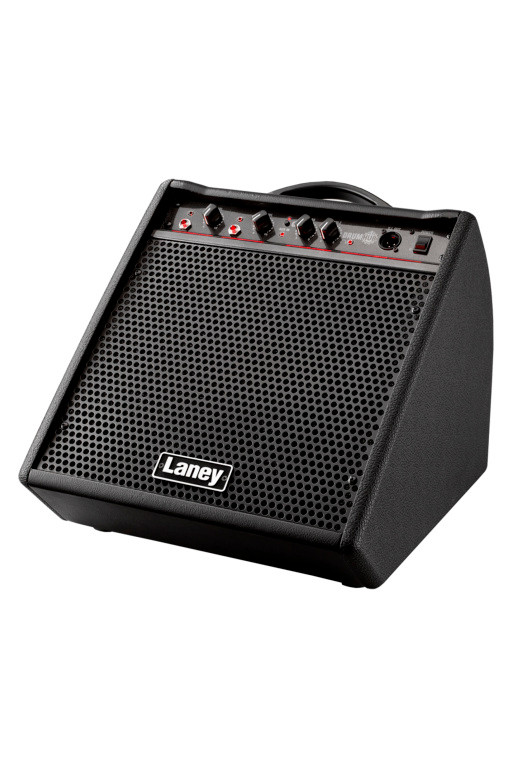

Laney DH40 DrumHub Electronic Drum Monitor Amp for drums 40 W 1 x 8" Portable Combo Amplifier for Drummers and Percussion

COMPACT & POWERFUL
The DH40 is designed to offer a compact and versatile partner to a wide variety of electronic percussion uses either at home, in the classroom or wherever you choose to use it. Its small footprint, hard hitting output and multiple inputs makes it a real winner in the classroom Practice has never been easier – the aux in allows you to play along directly and practice to your hearts content whatever the time of day making use of the headphone socket. The hard-hitting low end of the DH40 delivers all the bass drum punch you want, and the crystal-clear top end makes cymbals shimmer.

KEY FEATURES

• Designed specifically for electronic percussion
• 40W
• 8" Coaxial Speaker with 2" Tweeter
• Bass reflex
• 40° Monitor Angle
• Two Drum/Line Channels, 6.3mm with Level control
• Aux Input
• Bass and Treble Controls
• 3.5mm Stereo phones out
• Black Dual Texture covering
• Universal Operation: 100-240V~ / 24V/2.5A
• Easy Grip handle

DETAILS

• 2 channels
• Headphones socket
• 2 Band EQ

SPECIFICATIONS

• Item dimensions: 289mm x 352mm x 350mm (HWD)
• Item weight: 7.5kg

The DRUMHUB DH40 is designed to deliver a wide variety of electronic percussion sounds at home, in the classroom or wherever you choose to use it.
Its small footprint, hard hitting output and multiple inputs make it perfect for use in the bedroom or rehearsal. The aux in allows you to play tunes directly from your phone making practising fun and engaging. The DH40 also has a headphone socket, making it possible to practise with minimal distraction to others.
The punchy low end of the DH40 delivers all the bass you look for in an acoustic bass drum, and the crystal-clear top end makes your E-Drum cymbals sound just like the real thing.

FEATURES
• 8” Woofer with 2” Tweeter
• 40 Watts
• 2 INDEPENDENT INPUTS both with volume controls
• Two Band EQ
• AuxIn
• Headphone Output
• 100-240V Universal Voltage POWER SUPPLY INCLUDED

CONTROLS
DH40 FRONT PANEL
• INPUT 1 JACK
o Connect an external electronic drum/sound module. Uses 6.3mm jack
• INPUT 2 JACK
o Connect an external electronic drum/sound module. Uses 6.3mm jack
• INPUT 1 LEVEL
o Adjust the volume of the device connected to input 1
• INPUT 2 LEVEL
o Adjust the volume of the device connected to input 2
• BASS
o Adjusts the low-end response of the signal. Turning it clockwise increases the amount of
bottom-end, giving you a fuller tone. As the amplifier is driven harder and louder you may
find the need to dial out a little bass to stop it getting muddy.
• TREBLE
o Adjusts the high frequency content of the signal. Turning it clockwise increases the amount of top-end, giving your tone clarity and brightness. Turning it anti clockwise will produce a warmer sound, ideal for smoother tones.
• AUXIN
o 3.5mm stereo jack to connect a backing track to the mix from your audio playing device
such as .
• HEADPHONES
o 3.5mm socket to connect a pair of headphones for silent practise. Make sure to initially keep input levels low so as to not cause any hearing damage. Adjust levels accordingly to a comfortable volume for listening.
• POWER INDICATOR
o LED that indicates the amplifier is powered up.
• POWER SWITCH
o Flick switch to turn on and off when power supply is plugged in to the supplied power
supply unit.

DH40 REAR PANEL
• POWER IN
o Included power supply runs universally at 100-240V~.
Warning: Only connect the provided 15V 42W power supply to the DC inlet.

CONNECTIONS
The DH40 can be connected to one or two separate drum modules as well as an aux in for backing tracks. Headphones can also be connected to listen to the output. Below displays how these should be connected to the DH40:
Figure 1 DH40 connected to phone, headphones and two separate inputs
