Product Description
Warm analog delay with performance-ready time warping.

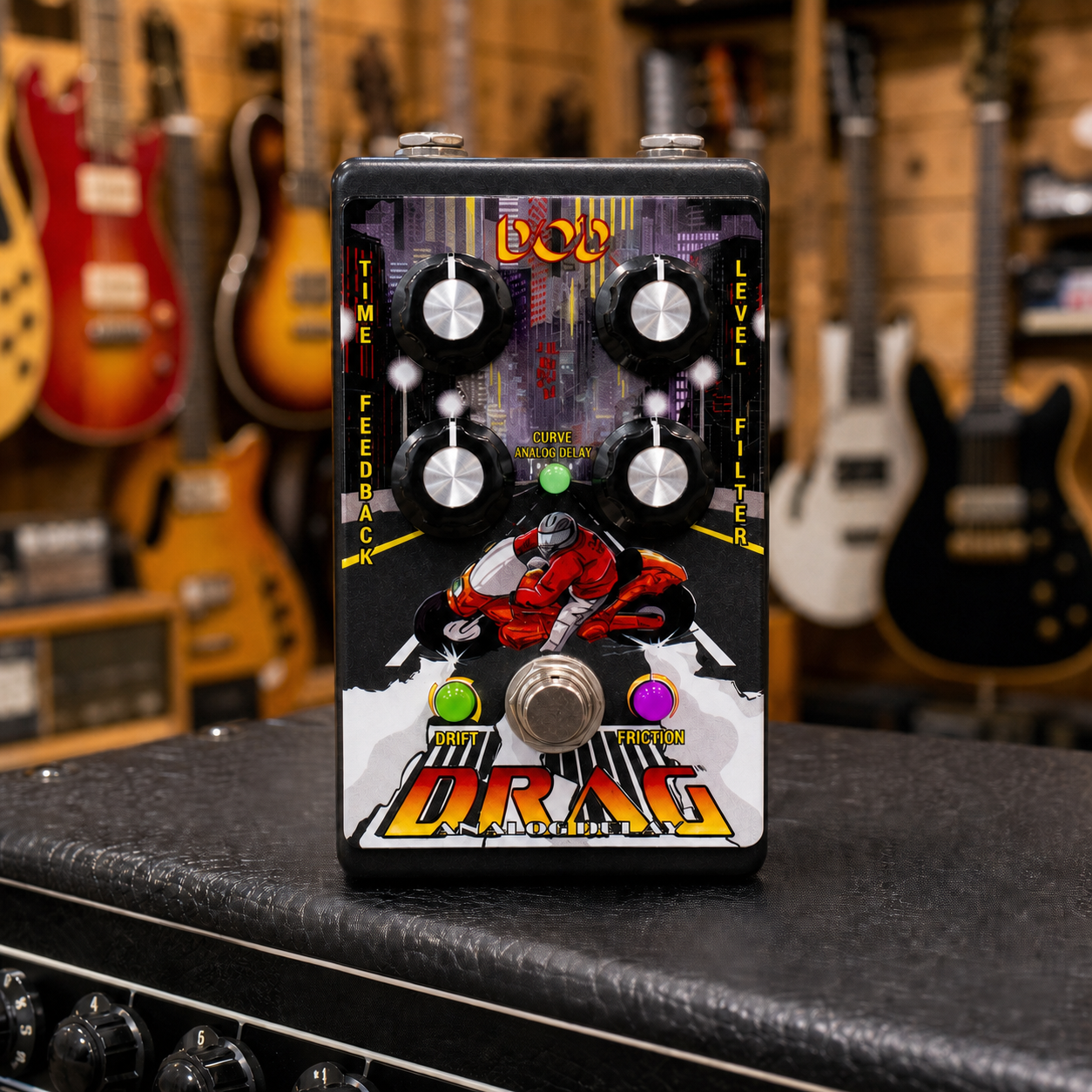

The DOD DRAG is a fully analog BBD delay pedal built for warm repeats, slapback echo, drifting modulation, and dramatic time-warping effects. It delivers up to 750ms of delay time, with up to 1.5 seconds available while Rubbernecking.
Three Friction modes turn the footswitch into a performance control. SlideStop and Evade create tape-stop-style slowdowns, stops, and accelerations. Rubberneck bends the repeats up or down by an octave. The Friction knob controls maneuver speed, while Drift and Curve shape the modulation depth, speed, and waveform.
Features
- Fully analog bucket-brigade delay engine
- Up to 750ms delay time; up to 1.5 seconds while Rubbernecking
- Six controls: Time, Feedback, Filter, Level, Drift, and Friction
- Four modulation waveforms: sine, reverse saw, square, and random
- Three modulation ranges: light, medium, and heavy
- SlideStop, Rubberneck, and Evade Friction modes
- Self-oscillation capability
- True bypass and selectable delay tails
- Top-mounted input, output, power, and FS3X control jacks
- Optional DigiTech FS3X footswitch support through the 3.5mm control jack
- Reversible StagePlate with rubber skid-pad and hook-and-loop sides
- Included Mechanic’s Toolkit
Specifications
- Dimensions: 4.8 x 2.8 x 1.5 inches; 2.1 inches high including footswitch
- Pedal weight: 0.67 lb
- Input: 1/4-inch mono instrument jack, greater than 500kΩ
- Output: 1/4-inch mono instrument jack, less than 1kΩ
- Chassis: aluminum
- Power: regulated 9V DC, center-negative, less than 120mA
- Power supply sold separately
- Designed in Salt Lake City, Utah
- One-year manufacturer warranty
Brand new from an authorized dealer. Free shipping within the continental United States.
